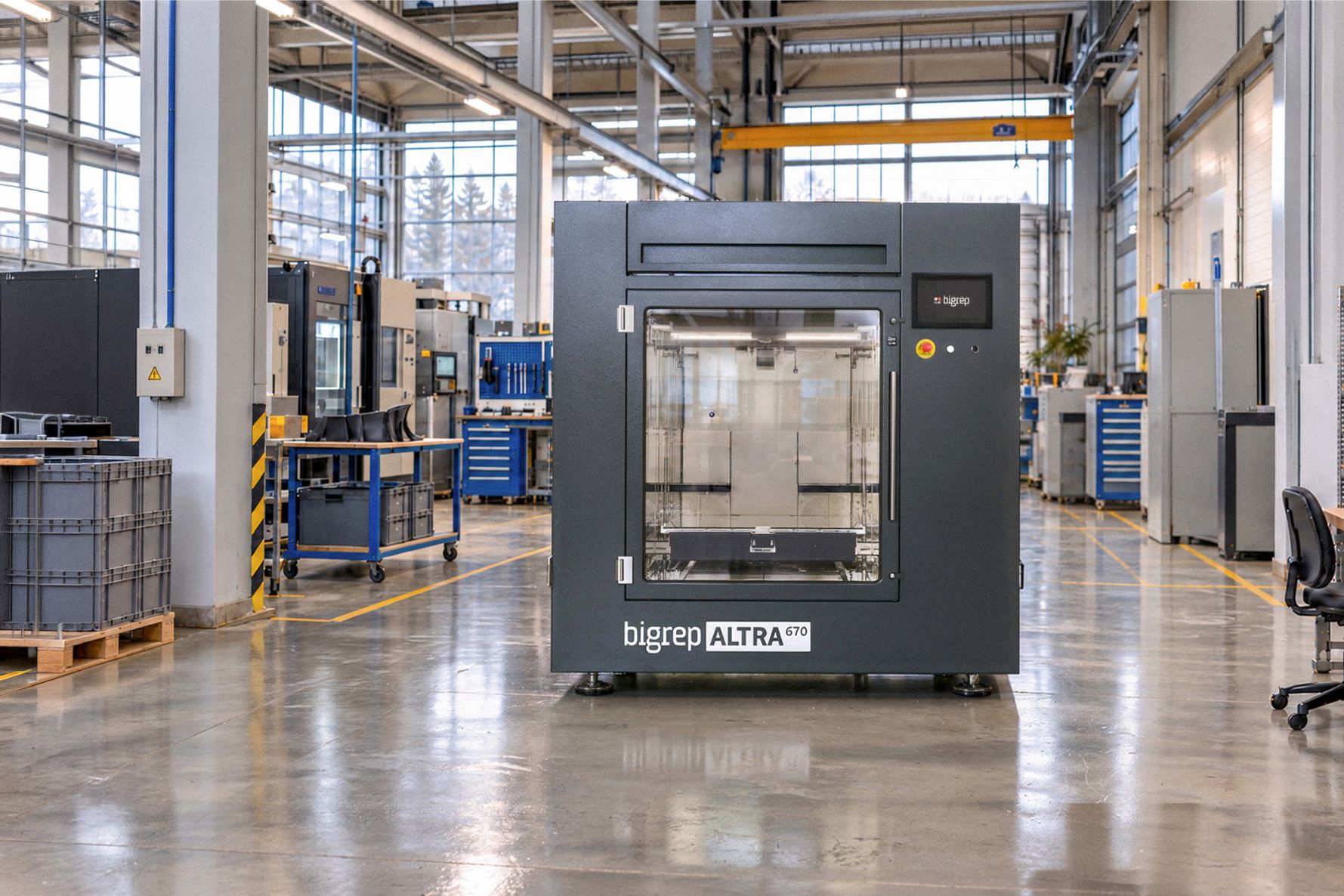

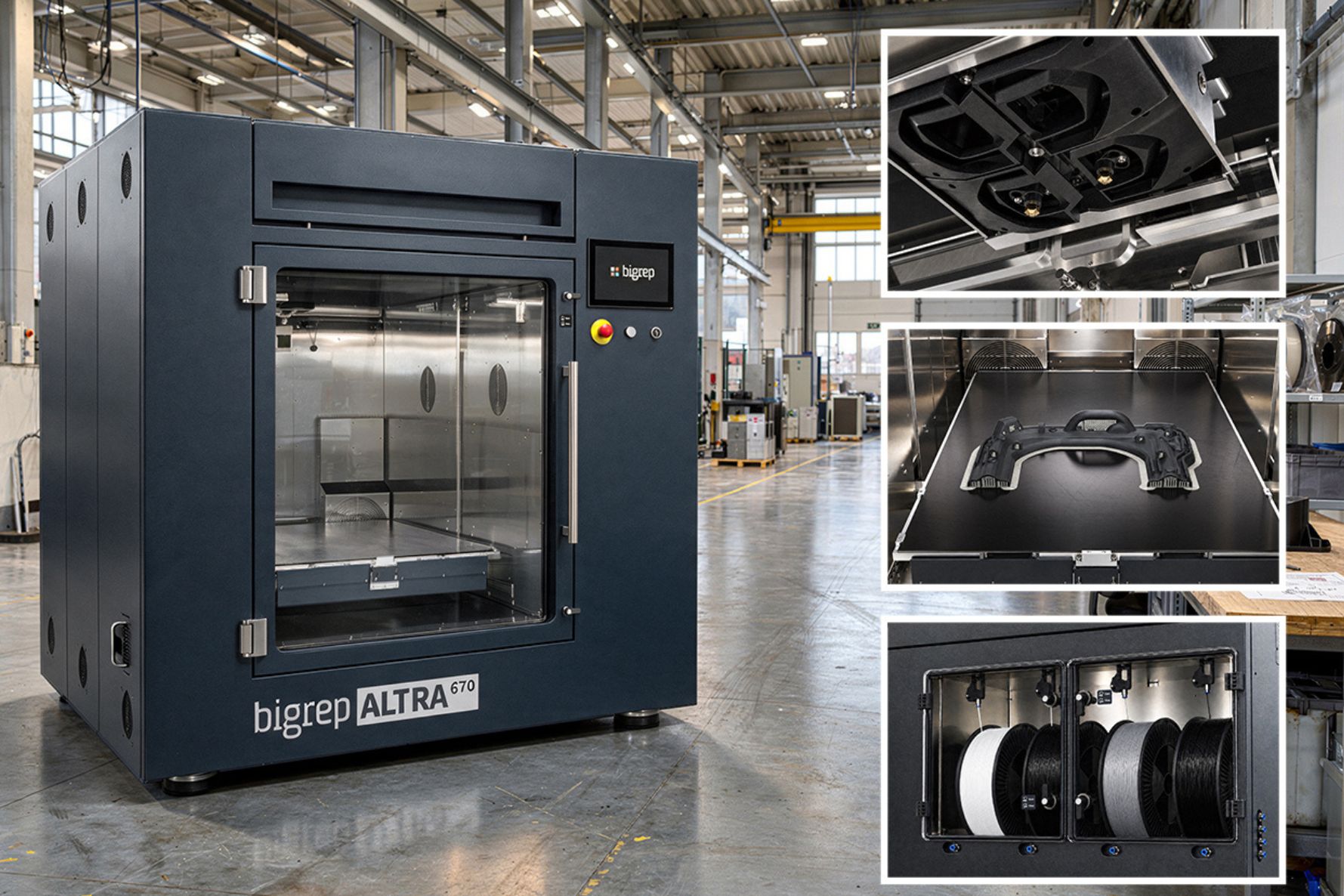

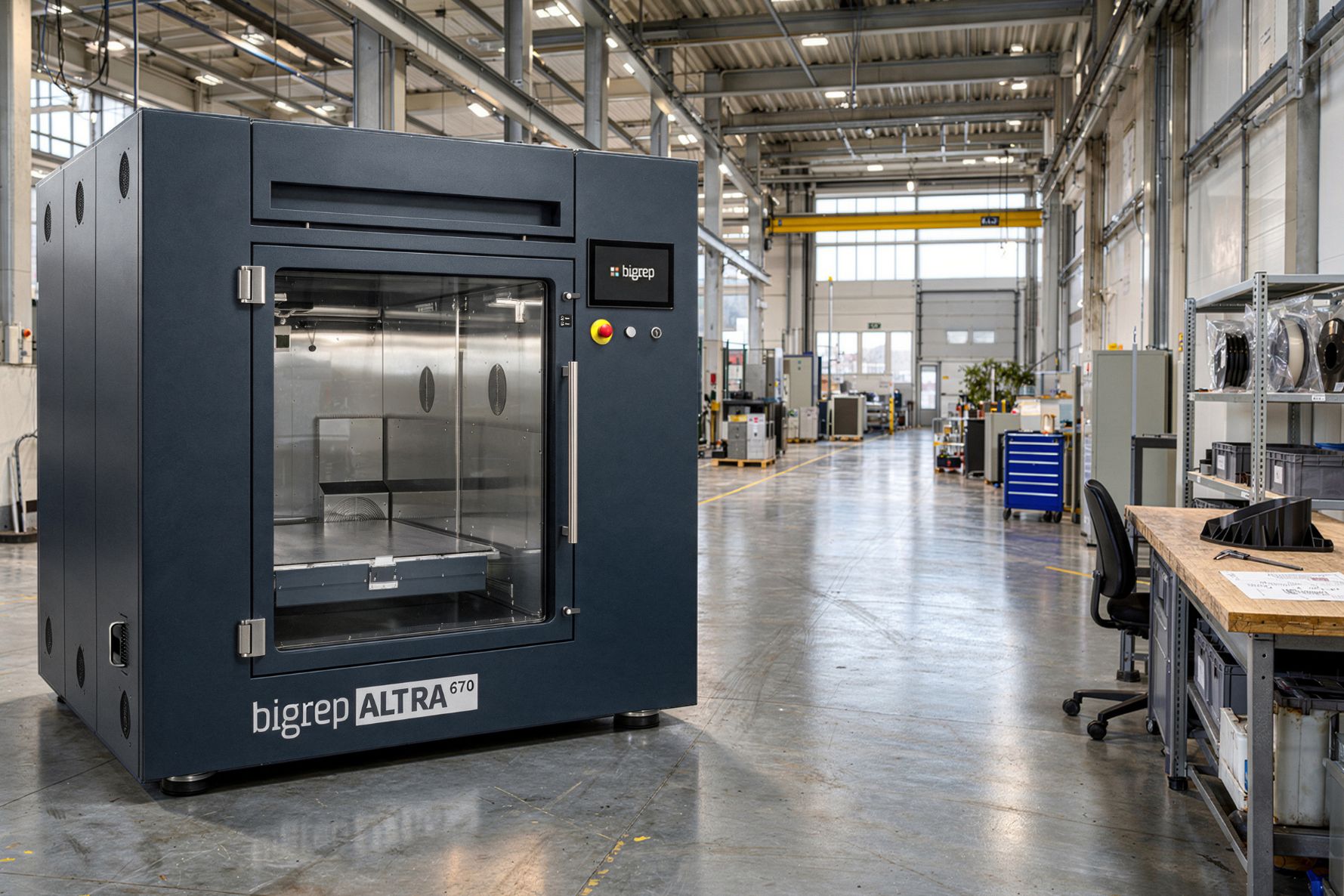

Large Format Industrial 3D Printer
Your Parts Are Getting Larger. Your Production Delays Shouldn’t.
When oversized components, supplier lead times, and repeated design changes slow your project, it’s time to evaluate production closer to your engineering team.
Explore the BigRep ALTRA 670 with NeoMetrix Technologies and determine whether it fits your parts, materials, and purchasing goals.
► Large build volume 700 × 1,200 × 800 mm (x,y,z)
► Heated chamber Up to 140°C
► Extruder temperature Up to 450°C
► Print speed Up to 400 mm/s (XY)
► Extruder System- Dual water-cooled DSX extruders
► Material Capabilities ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC (Open for compatible third-party materials)
FEATURES
OPEN CHAMBER

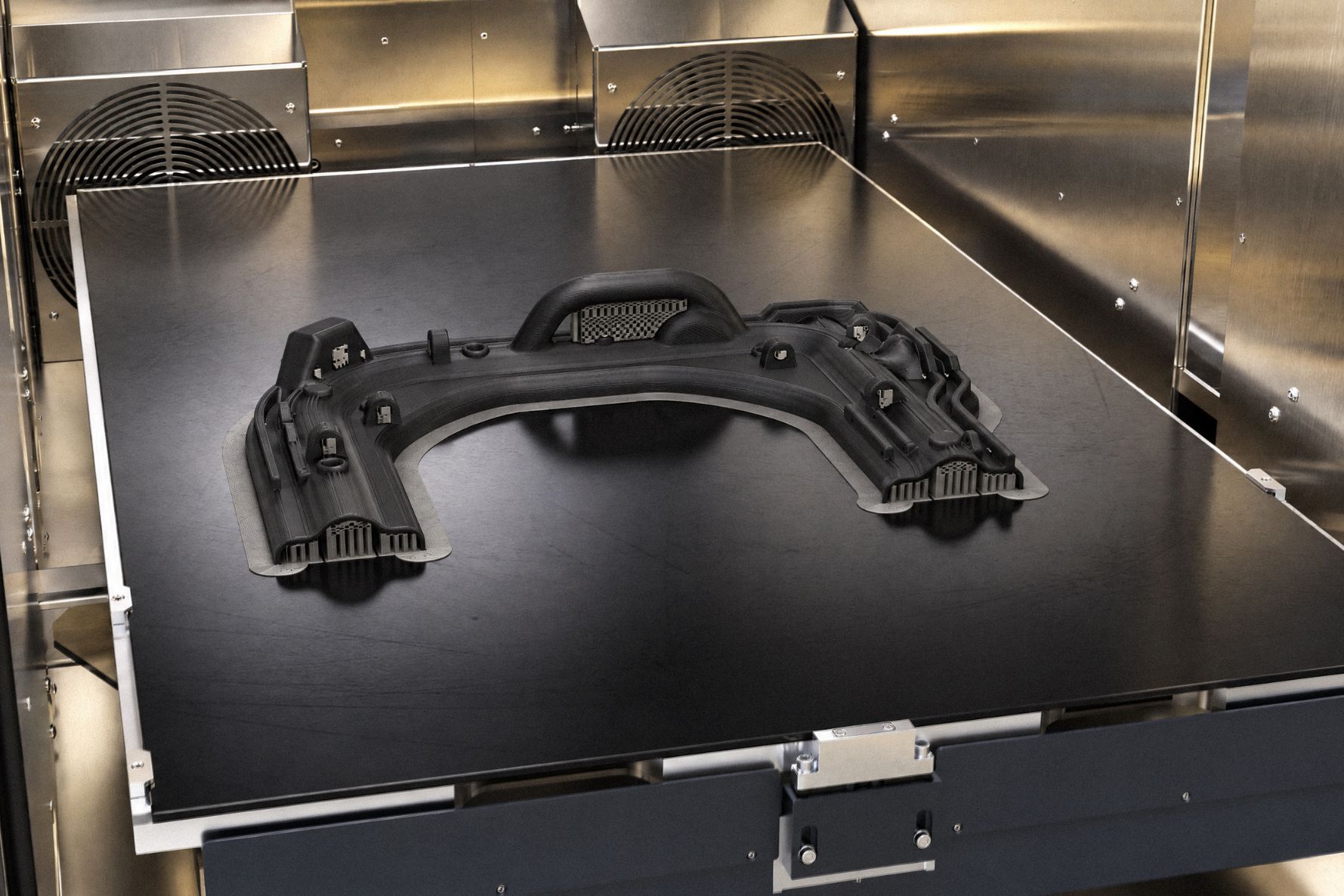

More Room for Large Components
Approximately 670 liters of capacity accommodates parts up to 1,200 mm along the Y axis.
HIGH-TEMPERATURE
CAPABILITIES
Controlled Heat Across the Build
Chamber and bed temperatures reach 140°C. Explain material selection in relation to the application.

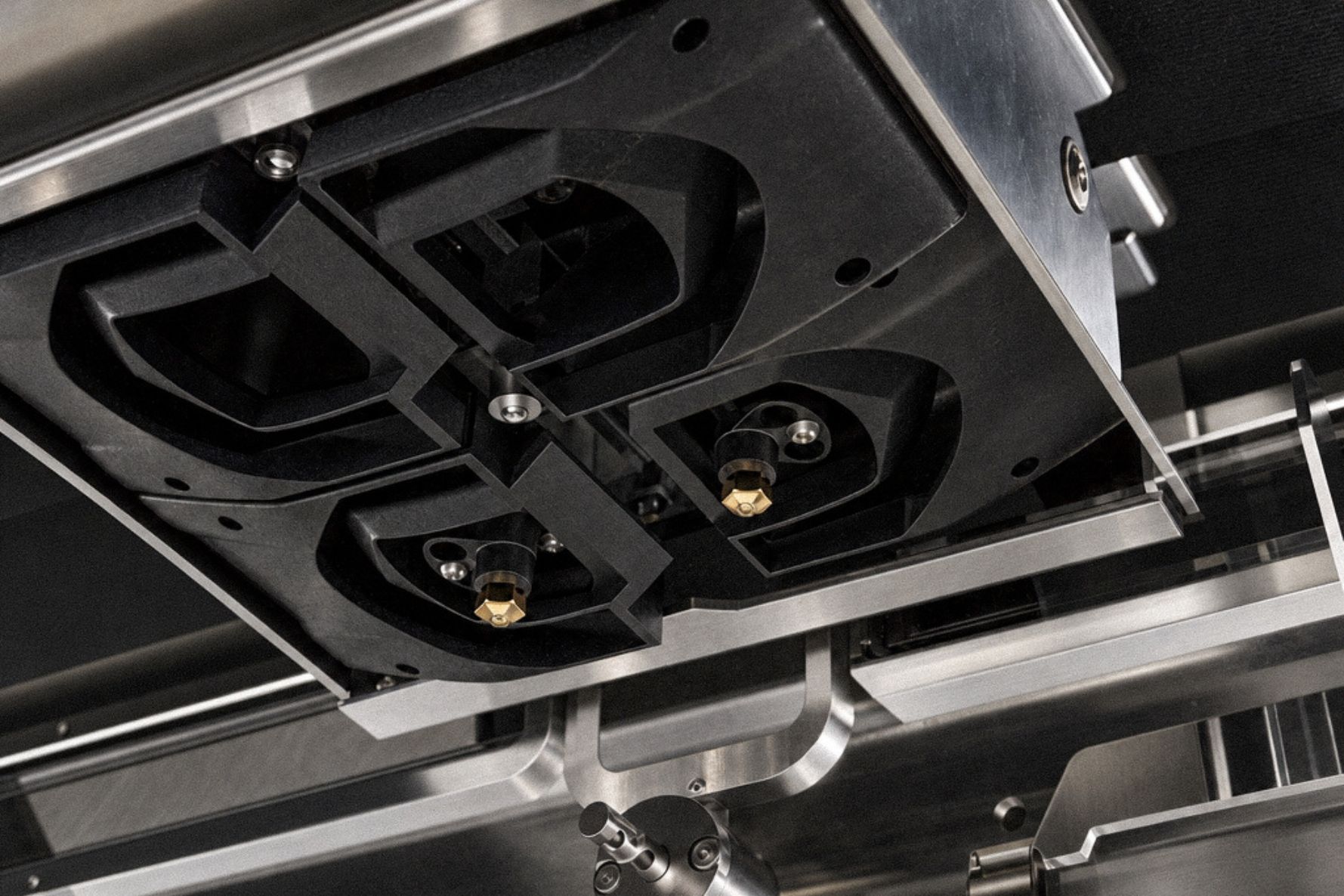

UP TO FOUR RELIABLE
DSX EXTRUDERS
Backup Extrusion for Long Prints
Relay Mode transfers printing to the second extruder when filament runs out.

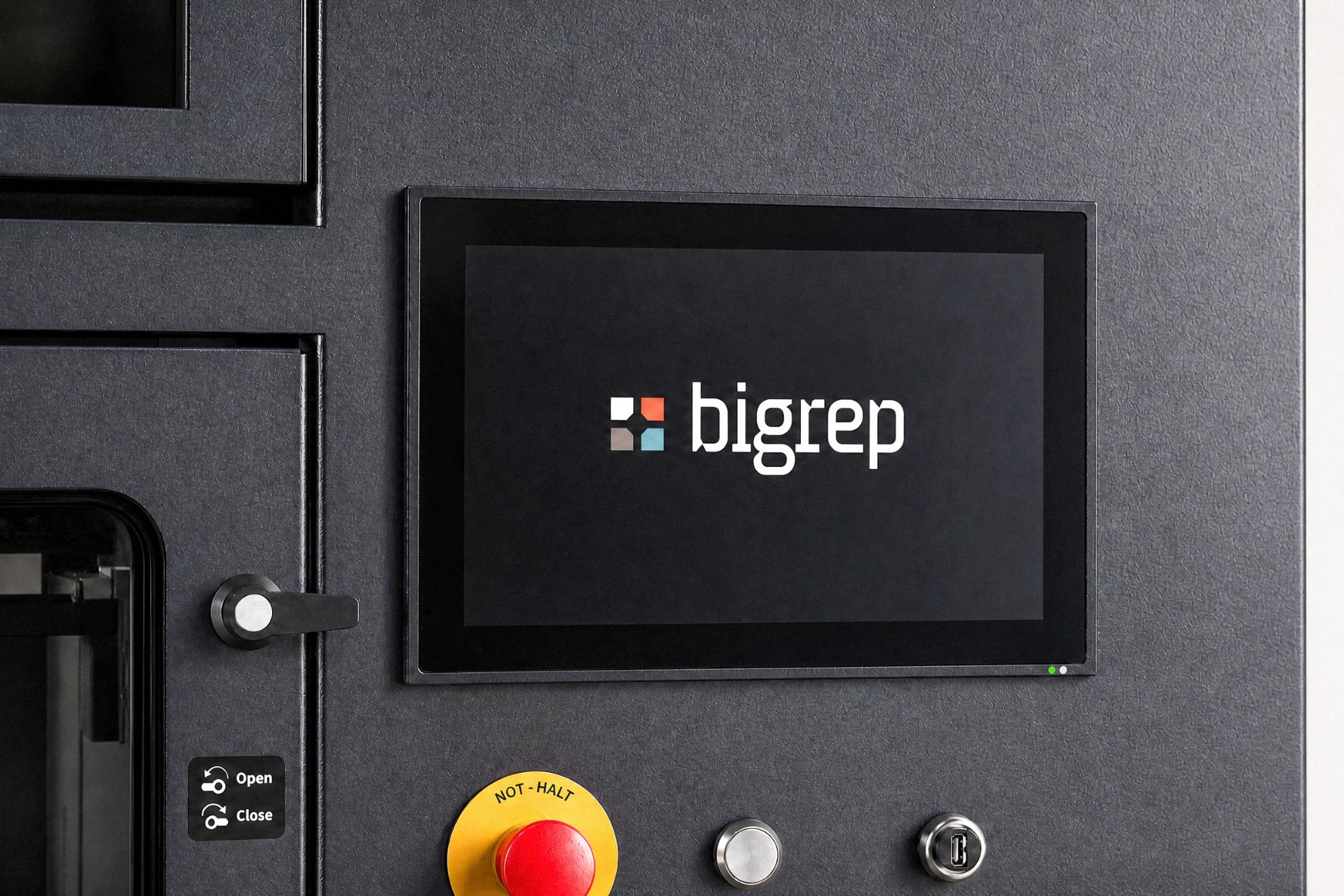

FULLY AUTOMATED QUICK START
Easier Preparation and Oversight
Automated calibration and an integrated camera support setup and remote observation.
Buying an Industrial 3D Printer Starts With the Right Questions
NeoMetrix can help you define the next step.
Four Steps to Evaluate the BigRep ALTRA 670
1. Share your application: Describe the part and the problem you need to solve.
2. Review requirements: Discuss dimensions, materials, quantities, and performance.
3. Build your proposal: Request equipment pricing and the services you need.
4. Plan implementation: Confirm site requirements, timing, and training.
HIGH-TEMP 3D PRINTER FOR DEMANDING APPLICATIONS
-
-
-
3D Print in Full Scale
-
Boost Productivity
-
Cut Your Costs
-
Print Parts in a Variety of Engineering Grade Materials
-
-
TECHNICAL SPECIFICATIONS
| Version | BigRep ALTRA 670 |
|---|---|
| Build volume | 700mm x 1200mm x 800mm (x,y,z) |
| Recommended materials | ABS, ASA, PC — with BLADE slicing profiles |
| Compatible materials | ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC (Open for compatible third-party materials) |
| Extruder | Direct Synchronized Extruder (DSX) |
| Extruder configuration | Dual water-cooled DSX |
| Nozzles | Diamond |
| Nozzle diameters | 0.6mm or 1.0mm |
| Layer thickness | From 0.15mm |
| Filament diameter | 1.75mm |
| Extruder temp | Up to 450°C |
| Build chamber temp | Up to 140°C |
| Print bed temp | Up to 140°C |
| Print bed surface | SWITCHPLATE |
| Max throughput | 250 g/h |
| Position accuracy | < 0.05mm |
| Movement speed | XY up to 400 mm/s |
| Drive technology | Servo motors |
| Air cleaning unit | HEPA and activated carbon filters |
| Material storage | Keep-Dry Chamber |
| Pause printing | Pause and resume with out-of-filament detection |
| Backup function | Relay Mode |
| Bed leveling | Adaptive mesh bed leveling |
| Calibration | Automated |
| Camera | HD wide-angle camera for remote monitoring |
| Power supply | 3P+PE, 400 V/480 V, 32 A, 50/60 Hz |
| External dimensions | 1900mm x 2450mm x 1950mm (x,y,z) |
| Weight | Approx. 1870kg |
| Certifications | CE, UL Ready |
